Conductivity testing device 3D model using AutoCAD

Also Read

1. Open AutoCAD software and start new drawing from acad3D template.

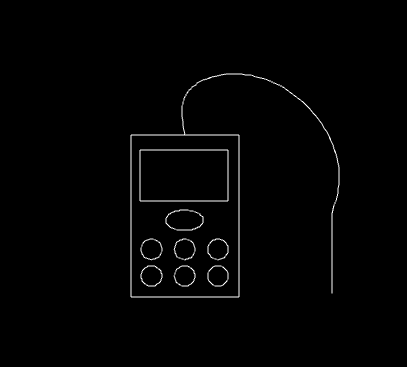

2. Now draw the below shown shape on top view.

3. Now split the workspace vertically and change orientations in both views. Then extrude the closed areas according to required dimensions. Then do the 3D fillet to the edges of the component.

4. Now create the wire shape and tester shapes with Sweep and Loft tools.

5. Now change the view type as realistic and apply colors on to surfaces of the component.
