Isometric drawings for practice in AutoCAD

What is Isometric Drawing?

Isometric drawing is a method of visually representing three-dimensional objects in two dimensions. It allows for a clear and comprehensive depiction of complex structures by keeping the scale consistent and eliminating distortion. Isometric drawings use a 30-degree angle from the horizontal in all three axes (X, Y, and Z), creating a pseudo-3D effect where the height, width, and depth are equally foreshortened.

Creating Isometric Drawings in AutoCAD

AutoCAD provides tools and settings that make creating isometric drawings straightforward. Here’s a step-by-step guide:

Step 1: Set Up Isometric Snap/Grid

1. Enable Isometric Snap/Grid:

- Type `SNAP` in the command line and press `Enter`.

- Type `Style` and press `Enter`.

- Choose `Isometric` and press `Enter`.

2. Switch Between Isoplanes:

- Type `F5` or `CTRL+E` to toggle between the top, right, and left isoplanes.

Step 2: Draw Isometric Circles and Arcs

1. Isometric Circles:

- Use the `ELLIPSE` command.

- Type `ELLIPSE` and press `Enter`.

- Type `I` for Isocircle and press `Enter`.

- Specify the center of the isocircle and then the radius.

2. Isometric Arcs:

- Use the `ELLIPSE` command similarly, but trim the ellipse to create an arc.

Step 3: Draw Isometric Lines and Shapes

1. Lines:

- Use the `LINE` command to draw lines in the isometric plane.

- Type `LINE` and press `Enter`.

- Draw lines while keeping in mind the 30-degree angles for the X, Y, and Z axes.

2. Boxes and Shapes:

- Combine lines and isocircles to create complex shapes and boxes.

Step 4: Add Text and Dimensions

1. Text:

- Use the `TEXT` command to add annotations.

- Rotate the text to align with the isometric planes.

2. Dimensions:

- Use the `DIM` command to add dimensions.

- Ensure dimensions are correctly aligned with the isometric drawing.

Example Commands and Syntax

1. Line Command:

- `LINE <start_point> <end_point>`

- Example: `LINE 0,0 10,10` (draws a line in the current isoplane)

2. Isometric Circle:

- `ELLIPSE I <center_point> <radius>`

- Example: `ELLIPSE I 5,5 3`

3. Switch Isoplanes:

- `F5` or `CTRL+E` to toggle isoplanes.

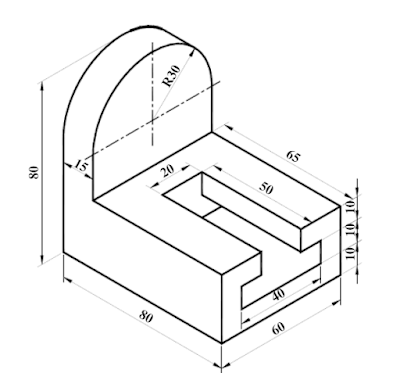

Isometric practice drawings for AutoCAD
