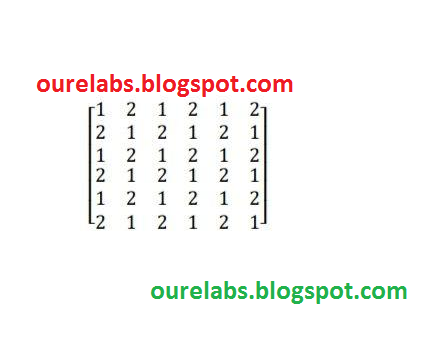

Create a script file to generate NxN matrix in form like below image

Also Read

generate NxN matrix using MATLAB

MATLAB script file to create NxN matrix:


clc   %Clear screen
clear all  % Clear all the workspace variables
m=input('Enter the number:');% Ask for input the number of rows and columns value
x=[1 2];    % Type of elements required
Y=[];    % initiate null matrix Y
for i=1:(m*m)
    Y=[Y x];
end
k=1;
Z=[];
for i=1:m
    for j=1:m
        Z(i,j)=Y(k)
        k=k+1;
    end
end


MATLAB script to create NxN matrix
